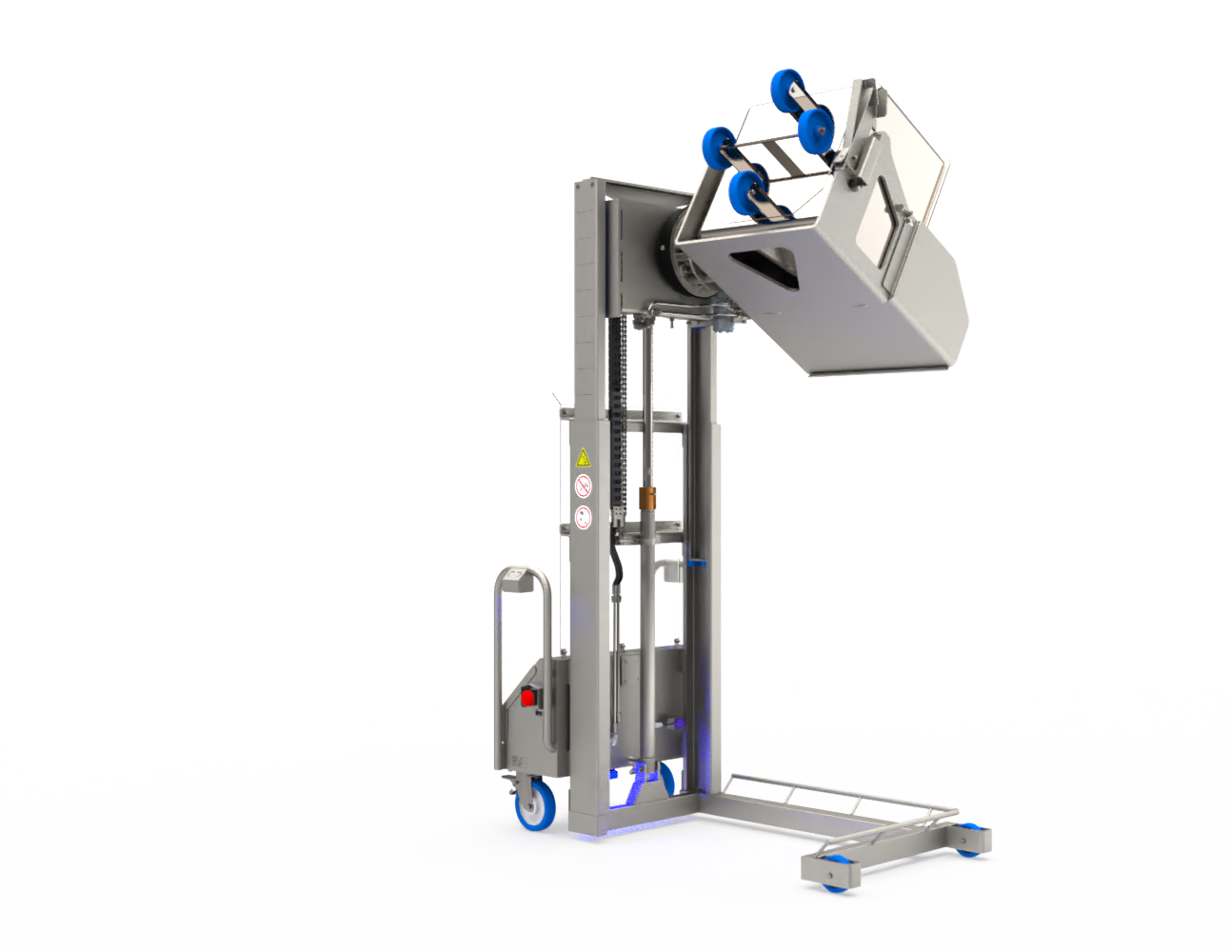

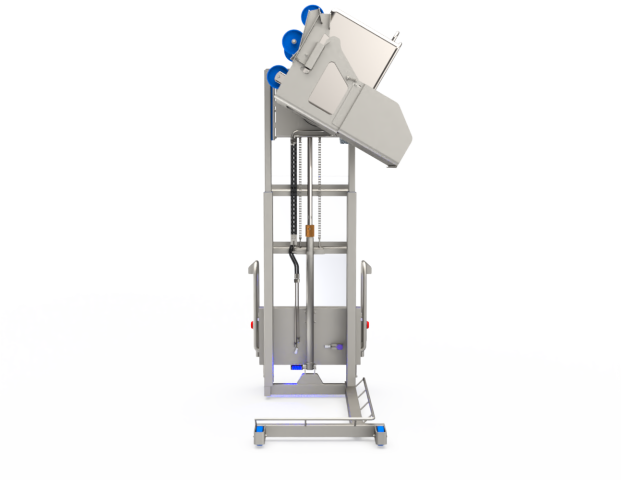

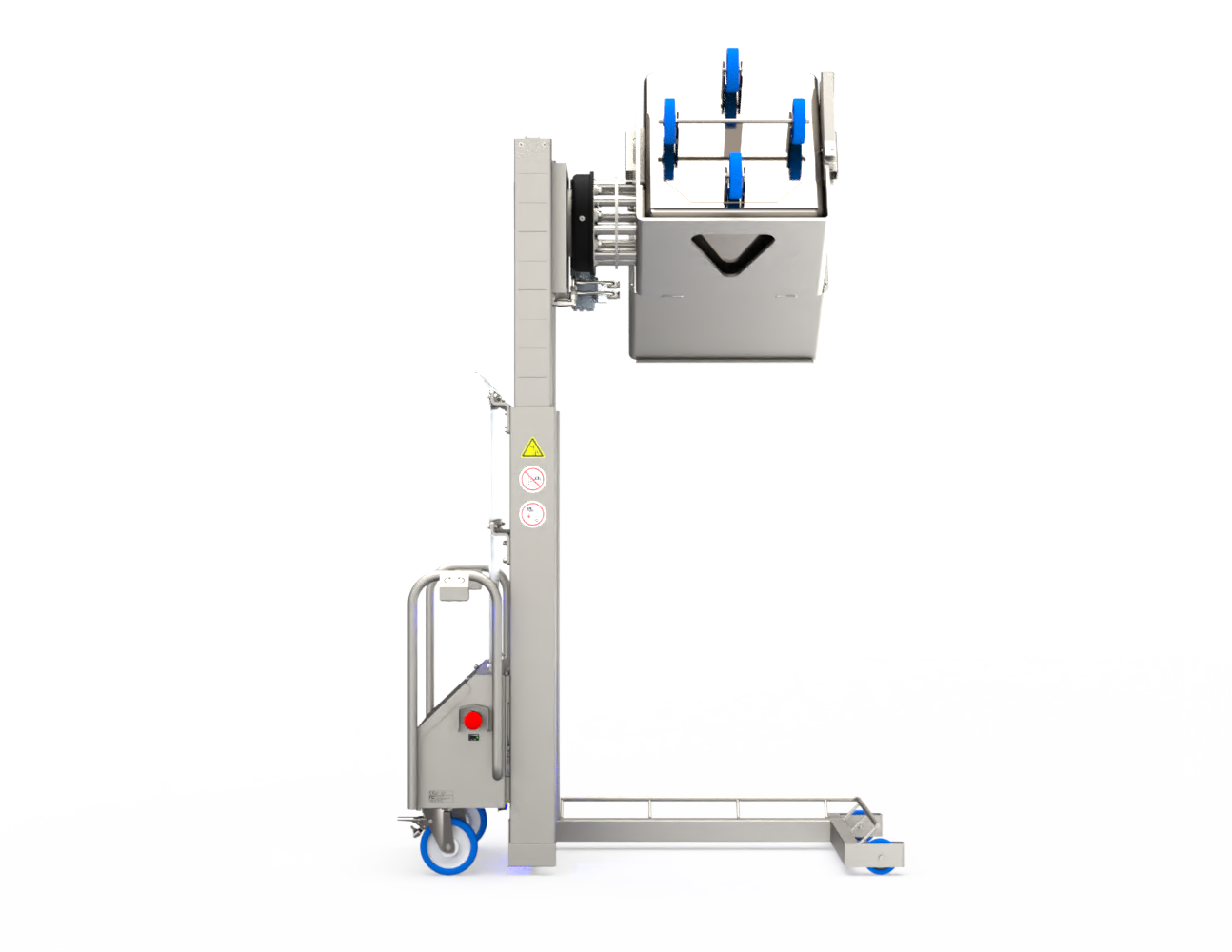

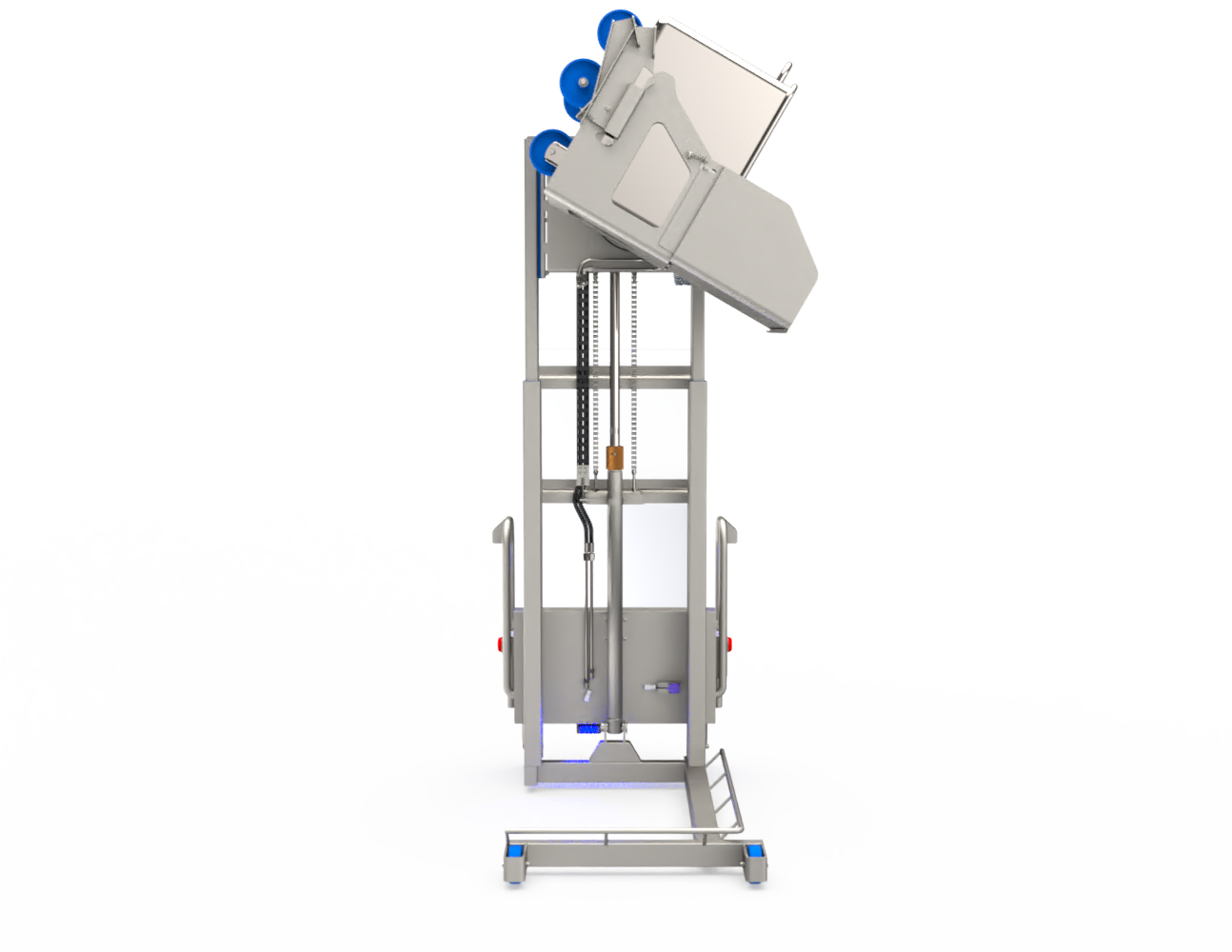

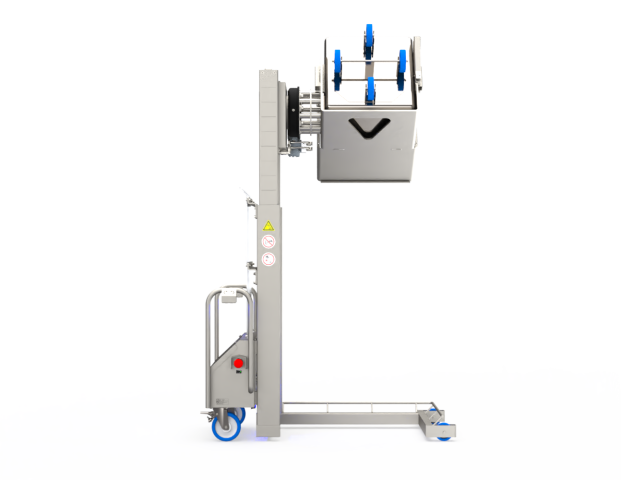

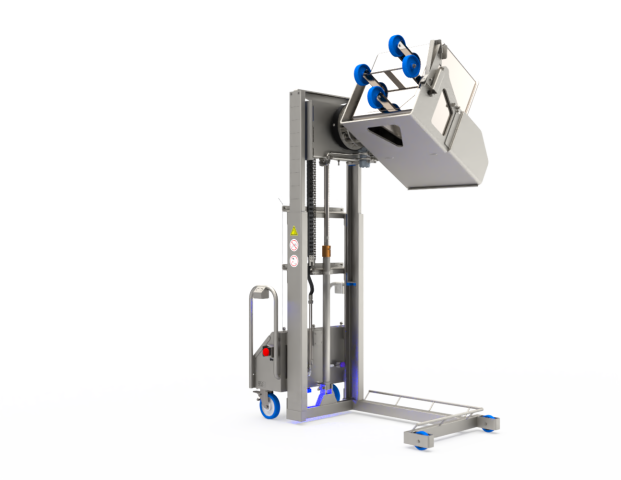

Backsaver FTD Flexible Trolley Dumper

The Backsaver FTD (Flexible Trolley Dumper) is our most adaptable and innovative tipping solution to date. Designed for food production environments where flexibility is essential, the FTD allows operators to tip standard 200- or 300-liter DIN9797 meat trolleys and eurobins at variable discharge heights – from as low as 100 mm up to 1.8 meters. It also supports any tipping angle, tailored to your process.

Unlike traditional dumpers built for a single fixed height, the FTD is ideal for production setups with multiple equipment levels or changing layouts. Whether you’re unloading into a high-mounted tumbler or onto a low-placed table, the FTD adapts with ease – helping you work smarter, not harder.

Smart productivity and ergonomic handling

Manual lifting, bending, and awkward postures are no longer necessary. By reducing physical strain and injury risks, the FTD supports a healthier workforce and more consistent productivity. It’s a perfect solution for companies looking to enhance ergonomics without sacrificing flexibility.

Real-world versatility

Because production lines rarely work under ideal, fixed conditions, the FTD was built to handle the grey areas of real operations – where timing isn’t perfect, and standard machines fall short. With its adjustable height and tipping settings, the FTD provides a reliable, mobile backup that can step in wherever it’s needed most.

Battery-powered freedom

The FTD runs on a powerful rechargeable battery, making it completely independent of factory infrastructure. It operates effectively in cold environments and can be recharged overnight. With a full battery, it can process approximately 30 tons of product.

Safe and intuitive to operate

As with all Backsaver machines, safety is a priority. The tipping motion is driven by a hydraulic cylinder and lowered by gravity, minimizing injury risk. It includes an audible backup alarm that alerts nearby operators during movement. Independent controls on both sides of the machine make operation simple and efficient from any angle.

Built for hygiene

Constructed entirely from stainless steel, the FTD is safe for direct food contact and can withstand high-pressure cleaning. It’s designed specifically for food-processing plants with high hygiene standards.

Standard Features:

• Continuously adjustable tipping height (100 mm – 1,800 mm)

• Fully adjustable tipping angle

• Hydraulic tipping system

• Rechargeable battery-powered operation

• Heavy-duty locking wheels for mobility

• Dual control panels (left and right side)

• Dead man’s (hold-to-run) buttons

• Audible reverse alarm

Optional Features:

• Custom tipping heights or chute extensions

• Trolley adapters for non-standard containers

• Plug-in power (400 V) for stationary applications

• Custom modifications on request
